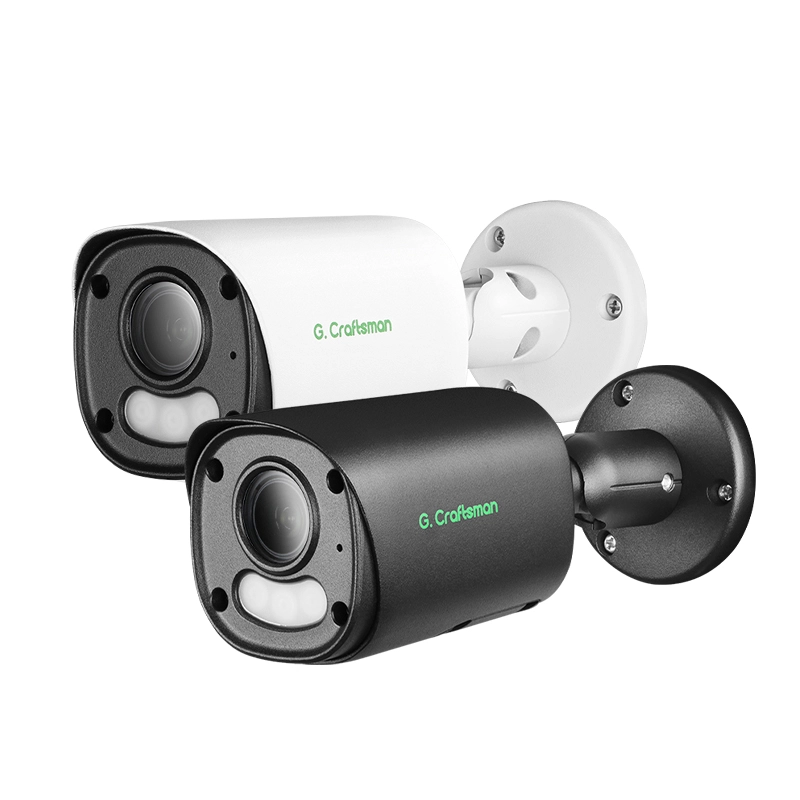

GA-YUF

  • High Quality Bullet POE Camera
  • Efficient H.265+ Video Compression Technology
  • Clear Imaging against Strong Backlight based on WDR
  • Human Shape and Vehicle Smart Detection
  • Water and Dust Resistant (IP67)
MegaPixel:
4MP
5MP
6MP
8MP
HD Lens:
3.6MM
2.8MM
6MM
Night Vision:
Infrared
Full Color
Dual Light
GET A QUOTE
  • GA-GFI
  • GA-GFI
  • GA-GFI
  • Infrared
  • Infrared
  • Download
Model No.GA-YUFI-M4GGA-YUFI-M5SGA-YUFI-M6GGA-YUFI-M8SSGA-YUFI-M8SG
Chipset
HD Resolution4MP@30fps5MP@30fps6MP@25fps8MP@20fps8MP@30fps
Image Sensor1/3” GC46531/2.8” SONY3351/2.7” GC56031/2.8” SONY4151/2.8” SONY415
Main ProcessorSSC377DSSC377DSSC30KQSSC338QSSC339G
Lens
Focus Length2.8mm(FOV:106.9°)
3.6mm(FOV:87.5°)
6mm (FOV:65.5°)		2.8mm(FOV:106.9°)
3.6mm(FOV:87.5°)
6mm (FOV:65.5°)		2.8mm(FOV:106.9°)
3.6mm(FOV:87.5°)
6mm (FOV:65.5°)		2.8mm(FOV:106.9°)
3.6mm(FOV:87.5°)
6mm (FOV:65.5°)		2.8mm(FOV:106.9°)
3.6mm(FOV:87.5°)
6mm (FOV:65.5°)
Iris ApertureF1.6F1.6F1.6F1.6F1.6
Night Vision
Light Type3pcs IR Array3pcs IR Array3pcs IR Array3pcs IR Array3pcs IR Array
IR Distance30M30M30M30M30M
Image EnhancementROI,BLC, HLC, 2D/3D DNR, 120dB WDR, Defog, Corridor
Image SettingsRotate, Mirror, Privacy Mask, Saturation, Brightness, Contrast, Sharpness, Gain, White
Video
CompressionH.265+/H.265/H.264H.265+/H.265/H.264H.265+/H.265/H.264H.265+/H.265/H.264H.265+/H.265/H.264
Main Stream2560*1440@30fps
2595*1944@25fps		2592*1944@30fps
2560*1440@30fps		3072*2048@25fps
2560*1440@30fps
1920*1080@60fps		3840*2160@20fps
2592*1944@30fps
1920*1080@60fps		3840*2160@30fps
1920*1080@60fps
Sub Stream30FPS (720×480,D1,VGA,640×360)30FPS (720×480,D1,VGA,640×360)30FPS (720×480,D1,VGA,640×360)30FPS (720×480,D1,VGA,640×360)30FPS (720×480,D1,VGA,640×360)
Audio
Audio StandardG.711-u/G.711-a

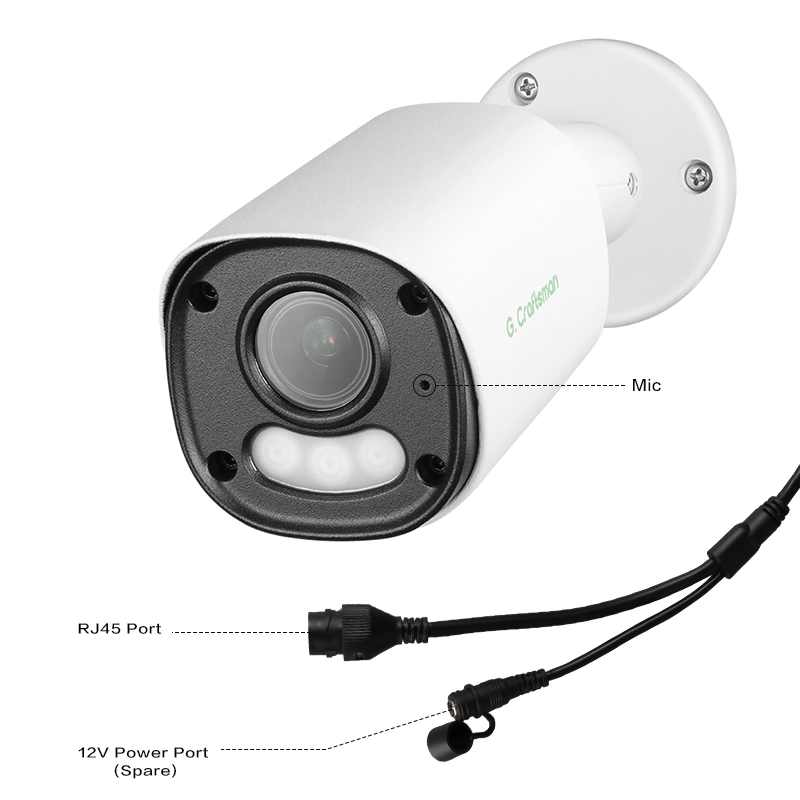

Audio I/OBuilt-in Microphone  (Speaker Optional)
Network
ProtocolTCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP, RTMP
OnvifSupport ONVIF (Profile S)
P2PYes
Smart FunctionHuman Detection, Vehicle Detectioon, Intrusion Detetion, Line Cross Detetion,Motion Detection etc
LanguageEnglish, Russian, German, Italian,Turkish, Polish, Korean, Japanese,Slovenian,Traditional Chinese, Simplified Chinese etc.
General
Protection LevelFull Metal, IP67
SD Card SlotOptional
Power SupplyIEEE802.3af PoE 48~52V; (12V DC Spare)
Work Temperature-40℃~60℃  (-40 °F to 140 °F)
Dimension70(W)*75(H)*190(L)mm
Download
GcraftsmanCatalog-2024Spdf10.54 MB
