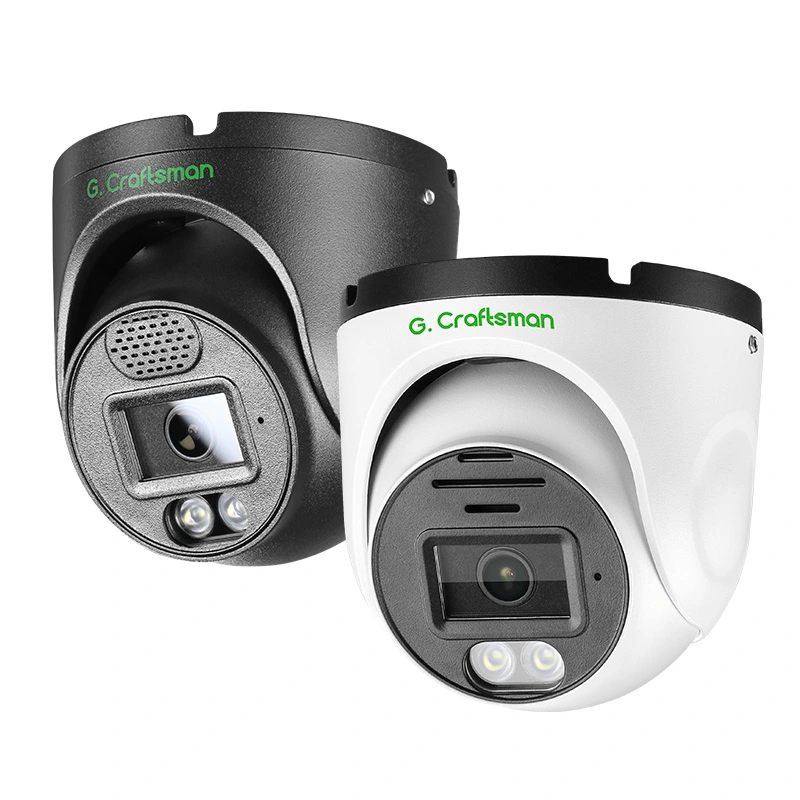

GA-DF-roing

Infrared
Infrared
Download

Model No.	GA-DFD-M4G	GA-DFD-M5S	GA-DFD-M6G	GA-DFD-M8SS	GA-DFD-M8SG
Chipset
HD Resolution	4MP@30fps	5MP@30fps	6MP@25fps	8MP@20fps	8MP@30fps
Image Sensor	1/3” GC4653	1/2.8” SONY335	1/2.7” GC5603	1/2.8” SONY415	1/2.8” SONY415
Main Processor	SSC377D	SSC377D	SSC30KQ	SSC338Q	SSC339G
Lens
Focus Length	2.8mm(FOV:106.9°) 3.6mm(FOV:87.5°) 6mm (FOV:65.5°)	2.8mm(FOV:106.9°) 3.6mm(FOV:87.5°) 6mm (FOV:65.5°)	2.8mm(FOV:106.9°) 3.6mm(FOV:87.5°) 6mm (FOV:65.5°)	2.8mm(FOV:106.9°) 3.6mm(FOV:87.5°) 6mm (FOV:65.5°)	2.8mm(FOV:106.9°) 3.6mm(FOV:87.5°) 6mm (FOV:65.5°)
Iris Aperture	F1.6	F1.6	F1.6	F1.6	F1.6
Night Vision
Light Type	2pcs Dual Light	2pcs Dual Light	2pcs Dual Light	2pcs Dual Light	2pcs Dual Light
IR Distance	25M	25M	25M	25M	25M
Image Enhancement	ROI,BLC, HLC, 2D/3D DNR, 120dB WDR, Defog, Corridor
Image Settings	Rotate, Mirror, Privacy Mask, Saturation, Brightness, Contrast, Sharpness, Gain, White
Video
Compression	H.265+/H.265/H.264	H.265+/H.265/H.264	H.265+/H.265/H.264	H.265+/H.265/H.264	H.265+/H.265/H.264
Main Stream	25601440@30fps 25951944@25fps	25921944@30fps 25601440@30fps	30722048@25fps 25601440@30fps 1920*1080@60fps	38402160@20fps 25921944@30fps 1920*1080@60fps	38402160@30fps 19201080@60fps
Sub Stream	30FPS (720×480,D1,VGA,640×360)	30FPS (720×480,D1,VGA,640×360)	30FPS (720×480,D1,VGA,640×360)	30FPS (720×480,D1,VGA,640×360)	30FPS (720×480,D1,VGA,640×360)
Audio
Audio Standard	G.711-u/G.711-a
Audio I/O	Built-in Microphone + Speaker
Network
Protocol	TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP, RTMP
Onvif	Support ONVIF (Profile S)
P2P	Yes
Smart Function	Human Detection, Vehicle Detectioon, Intrusion Detetion, Line Cross Detetion,Motion Detection etc
Language	English, Russian, German, Italian,Turkish, Polish, Korean, Japanese,Slovenian,Traditional Chinese, Simplified Chinese etc.
General
Protection Level	Full Metal, IP66

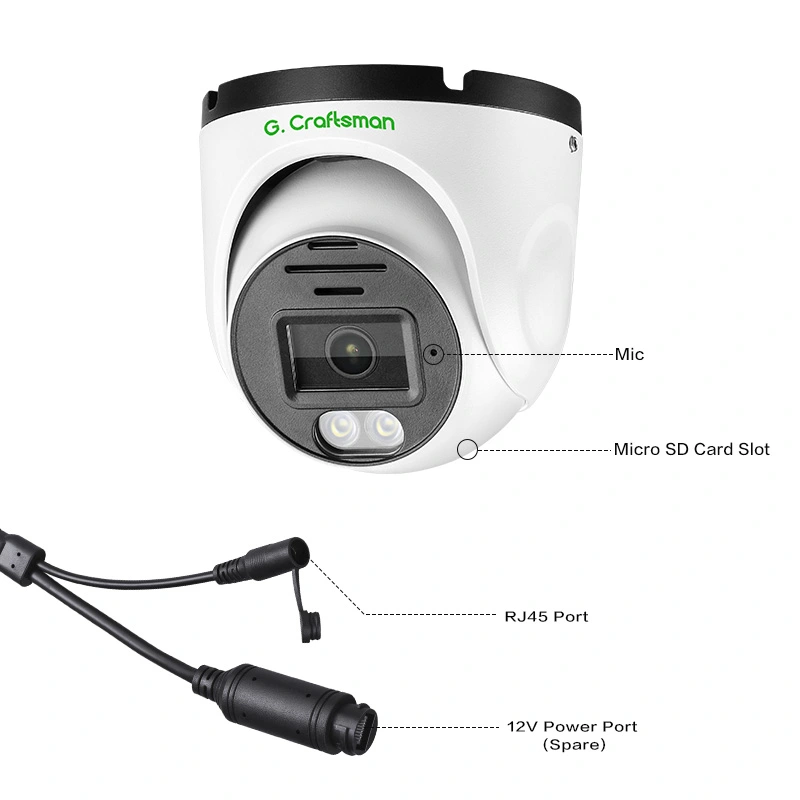

SD Card Slot	Yes
Power Supply	IEEE802.3af PoE 48~52V; (12V DC Spare)
Work Temperature	-40℃~60℃ (-40 °F to 140 °F)
Dimension	95(D)*90(H)mm
