GA-PS9

High Quality PTZ Dome POE Camera
Efficient H.265+ Video Compression Technology
Clear Imaging against Strong Backlight based on WDR
Human Shape and Vehicle Smart Detection
Water and Dust Resistant (IP67)

MegaPixel:

2MP

6MP

8MP

Optical Zoom:

Night Vision:

Dual Light

GET A QUOTE

Infrared
Infrared
Download

Model No.	GA-PS9X5D-M2S	GA-PS9X5D-M6S	GA-PS9X5D-M8S
Chipset
HD Resolution	2MP@30fps	6MP@25fps	8MP@20fps
Image Sensor	1/2.8” SONY307	1/2.8” SONY335	1/2.8” SONY415
Main Processor	SSC335Y	SSC377DY	SSC338QY
Lens
Focus Length	2.7~13.5mm(5X Optical Zoom)	2.7~13.5mm(5X Optical Zoom)	2.7~13.5mm(5X Optical Zoom)
Iris Aperture	F1.6	F1.6	F1.6
PTZ
Pan/Tilt Range	P:0-280°(15°/S) ; T:0°-90° (15°/S)
Preset Point	10
Guard Position Scan	Support
Human Auto Tracking	N/A
Night Vision
Light Type	2pcs IR +2pcs White Light	2pcs IR +2pcs White Light	2pcs IR +2pcs White Light
IR Distance	40M	40M	40M
Image Enhancement	ROI,BLC, HLC, 2D/3D DNR, 120dB WDR, Defog, Corridor
Image Settings	Rotate, Mirror, Privacy Mask, Saturation, Brightness, Contrast, Sharpness, Gain, White
Video
Compression	H.265+/H.265/H.264	H.265+/H.265/H.264	H.265+/H.265/H.264
Main Stream	19201080@30fps 20481520@25fps	30722048@25fps 25601440@30fps 1920*1080@60fps	38402160@20fps 25921944@30fps 1920*1080@60fps
Sub Stream	30FPS (720×480,D1,VGA,640×360)	30FPS (720×480,D1,VGA,640×360)	30FPS (720×480,D1,VGA,640×360)
Audio
Audio Standard	G.711-u/G.711-a

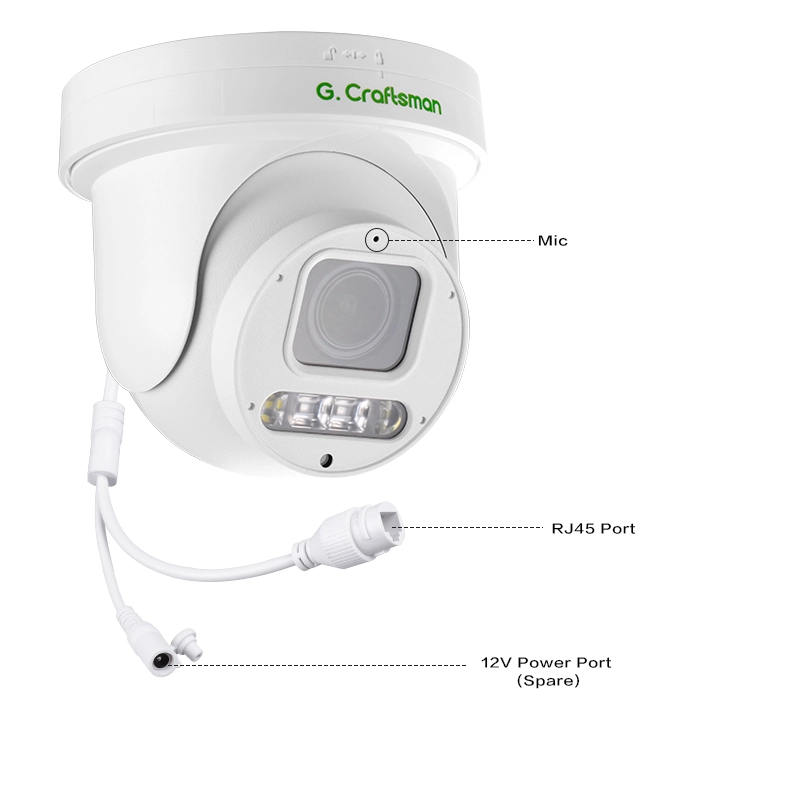

Audio I/O	Built-in Microphone + Speaker
Network
Protocol	TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP, RTMP
Onvif	Support ONVIF (Profile S)
P2P	Yes
Smart Function	Human Detection, Vehicle Detectioon, Intrusion Detetion, Line Cross Detetion,Motion Detection etc
Language	English, Russian, German, Italian,Turkish, Polish, Korean, Japanese,Slovenian,Traditional Chinese, Simplified Chinese etc.
General
Protection Level	Full Metal, IP66
SD Card Slot	Yes
Wiper	N/A
Power Supply	IEEE802.3af PoE 48~52V; (12V DC Spare)
Work Temperature	-40℃~60℃ (-40 °F to 140 °F)
Dimension	118(D)*105(H)mm

Download
