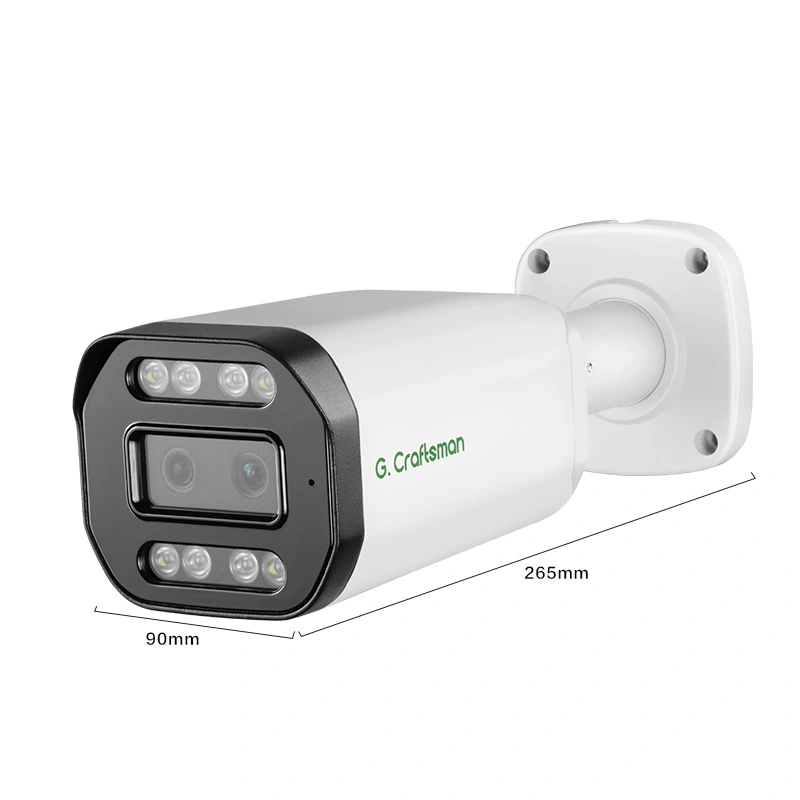

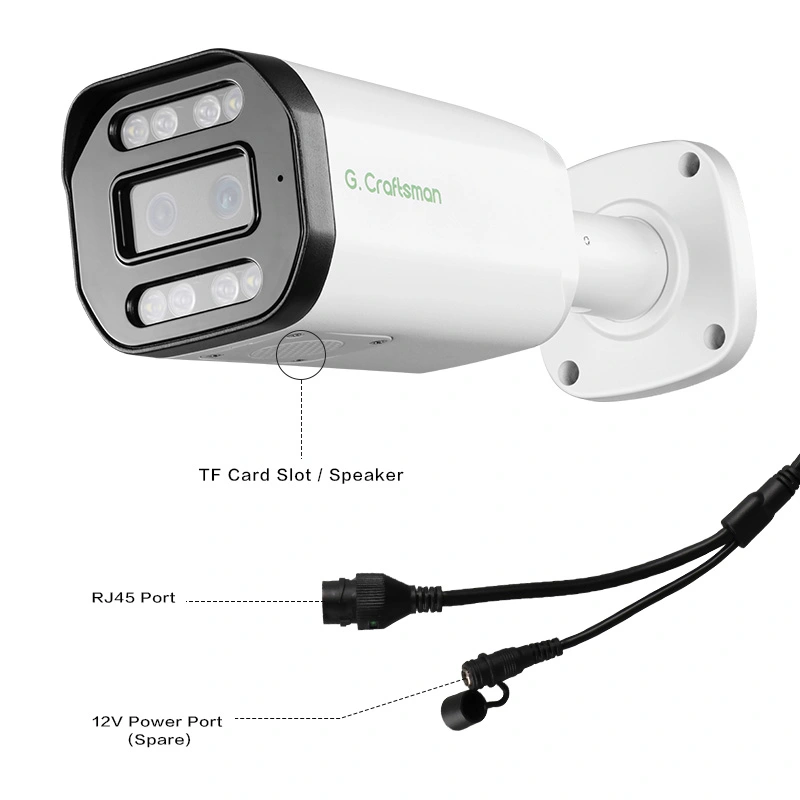

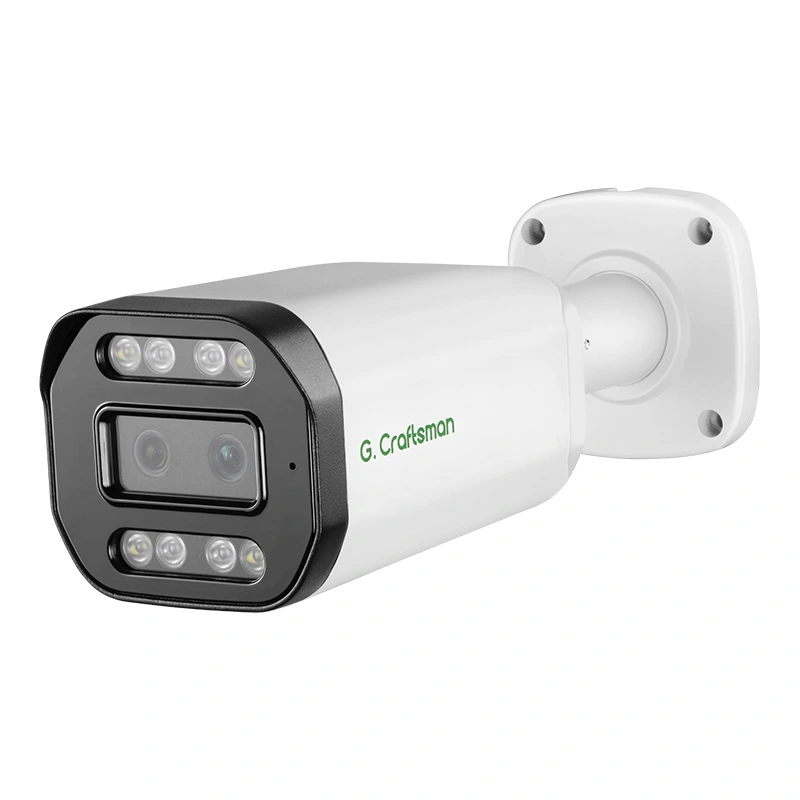

GA-B5FV
High Quality Binocular Zoom POE Camera
Efficient H.265+ Video Compression Technology
Clear Imaging against Strong Backlight based on WDR
Human Shape and Vehicle Smart Detection
Water and Dust Resistant (IP67)
MegaPixel
:
4MP
HD Lens
:
3.6MM+6MM
Night Vision
:
Dual Light
GET A QUOTE
facebook
line
twitter
whatsapp
pinterest
tumblr
linkedin
Infrared
Infrared
Download
Model No.
GA-B5FVD-M4G
Chipset
HD Resolution
4MP@30fps
Image Sensor
1/3” GC4653
Main Processor
SSC377D
Lens
Focus Length
3.6mm + 8mm (6X Digital Zoom)
Iris Aperture
F1.6
Night Vision
Light Type
4pcs IR + 4pcs Warm Light
IR Distance
40M
Image Enhancement
ROI,BLC, HLC, 2D/3D DNR, 120dB WDR, Defog, Corridor
Image Settings
Rotate, Mirror, Privacy Mask, Saturation, Brightness, Contrast, Sharpness, Gain, White
Video
Compression
H.265+/H.265/H.264
Main Stream
2560*1440@30fps
2595*1944@25fps
Sub Stream
30FPS (720×480,D1,VGA,640×360)
Audio
Audio Standard
G.711-u/G.711-a
Audio I/O
Built-in Microphone + Speaker
Network
Protocol
TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP, RTMP
Onvif
Support ONVIF (Profile S)
P2P
Yes
Smart Function
Human Detection, Vehicle Detectioon, Intrusion Detetion, Line Cross Detetion,Motion Detection etc
Language
English, Russian, German, Italian,Turkish, Polish, Korean, Japanese,Slovenian,Traditional Chinese, Simplified Chinese etc.
General
Protection Level
Full Metal, IP67
SD Card Slot
Yes
Power Supply
IEEE802.3af PoE 48~52V; (12V DC Spare)
Work Temperature
-40℃~60℃ (-40 °F to 140 °F)
Dimension
80(W)*78(H)*210(L)mm
